Python network data visualization
Data Harvest

© Lead Image © Mark Bridger, 123RF.com
The Scapy packet manipulation program lets you analyze and manipulate packets to create incident response reports or examine network security.
Most folks have pulled up Wireshark a time or two to troubleshoot an application or system problem. During forensics, packet captures (PCAPs) are essential. Often you are looking at things like top talkers, ports, bytes, DNS lookups, and so on. Why not automate this process with Python?
Scapy [1] is a great tool suite for packet analysis and manipulation. It is most often talked about in the realm of packet manipulation, but its ability to analyze packets is also top-notch.
Make Ready
First, you need to make sure you have Python 3 installed along with the following packages:
sudo pip3 install scapy scapy_http plotly PrettyTable
To get started, you will want a PCAP to analyze. To capture 1,000 packets and save them to the file example.pcap
, enter:
~$ sudo tcpdump -c 1000 -w example.pcap tcpdump: listening on enp0s3, link-type EN10MB (Ethernet), capture size 262144 bytes 1000 packets captured 1010 packets received by filter 0 packets dropped by kernel ~$

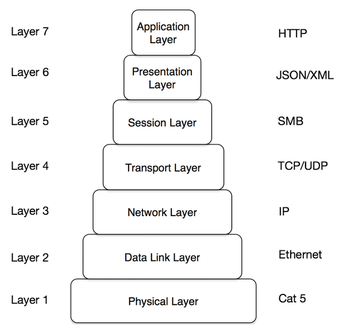

Scapy can handle all parts of the OSI model except Layer 1 (Figure 1). Listing 1 shows the Hello World! of packet reading. To begin, you need to read a raw packet (line 5), see if it has the layer your want (line 9), and then act on it. Because you are using Python, if you try to print out pkt[IP].src
when no IP is present, Python will throw an error, so you need to wrap it in a try
/except
(lines 10-13).
Listing 1
Looking for Layers
01 #Step 1: Import scapy 02 from scapy.* import all 03 04 #Step 2: Read the PCAP usimg rdpcap 05 packets = rdpcap("example.pcap") 06 07 #Step 3: Loop and print an IP in a packet in Scapy by looking at Layer 3 08 for pkt in packets: 09 if IP in pkt: 10 try: 11 print(pkt[IP].src) // Source IP 12 except: 13 pass

Sorting
If you ran the code in Listing 1 with your example.pcap
file of 1,000 packets, your terminal printed ~1,000 lines, which is obviously not very useful. To improve, you can read all the IPs, append them to a list, then run a counter, and print the results using the PrettyTable
module (Listing 2). As before, you import Scapy, but now you will also import the collection module and PrettyTable (Step 1). Next, add an empty list, and append (Step 2). Now you can use the counter to loop through the list of IPs and create a count (Step 3); finally, using the PrettyTable
module, you print out the results in a clean table (Step 4).
Listing 2
Adding a Counter
01 #Step 1: Imports 02 from scapy.all import * 03 from prettytable import PrettyTable 04 from collections import Counter 05 06 #Step 2: Read and Append 07 srcIP=[] 08 for pkt in packets: 09 if IP in pkt: 10 try: 11 srcIP.append(pkt[IP].src) 12 except: 13 pass 14 15 #Step 3: Count 16 cnt=Counter() 17 for ip in srcIP: 18 cnt[ip] += 1 19 20 #Step 4: Table and Print 21 table= PrettyTable(["IP", "Count"]) 22 for ip, count in cnt.most_common(): 23 table.add_row([ip, count]) 24 print(table) 25 26 +-----------------+-------+ 27 | IP | Count | 28 +-----------------+-------+ 29 | 10.0.2.15 | 482 | 30 | 52.84.82.203 | 93 | 31 | 8.8.8.8 | 82 | 32 | 104.16.41.2 | 76 | 33 | 216.58.216.232 | 30 | 34 | 104.20.150.16 | 20 | 35 | 52.84.133.105 | 16 | 36 | 209.132.181.15 | 16 | 37 | 140.211.169.196 | 15 | 38 | 72.21.91.29 | 12 | 39 | 104.244.46.103 | 12 | 40 +-----------------+-------+
Visualize
Now that you know how to read packets and do some counting, you can use the Plotly package to make graphs by building on the last example (Listing 3). First, you have to add the plotly
import to Step 1 (line 1); then, after going through Steps 2 and 3 as before, you replace Step 4 in the previous example of Listing 2 with new code that creates two new lists to hold x and y data (Listing 3, lines 4-5) and loops through the IPs again, adding them to the lists (lines 7-9).
Listing 3
Making Graphs
01 import plotly 02 03 #Step 4: Add Lists 04 xData=[] 05 yData=[] 06 07 for ip, count in cnt.most_common(): 08 xData.append(ip) 09 yData.append(count) 10 11 #Step 5: Plot 12 plotly.offline.plot({ 13 "data":[plotly.graph_objs.Bar(x=xData, y=yData)] })

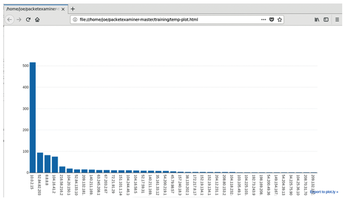

By default, Plotly uses its web UI to create charts, but if, like me, you use this data in a incident response situation, you do not want to share that data with a cloud system. Therefore, I use the offline version to plot my data in a new Step 5. When run, it will open your default web browser (Figure 2).
