And the Time Is …
Charly's Column – ntpviz
The Network Time Protocol allows admins to keep time on their computers. Due to the way the system works, this timekeeping is only moderately successful. Charly uses the ntpviz statistics tool to visualize time fluctuation.
I recently browsed the NTPsec repository [1], a heavily reworked fork of the well-known Network Time Protocol daemon, ntpd
. The newcomer is looking to ditch legacy ballast and finally provide protection against Man-in-the-Middle attacks. NTPsec is not the topic today, but I would like to talk about a small tool that I found while browsing: ntpviz
. Among other things, the program visualizes the extent to which the time queried by the NTP server deviates from the local time (offset) and how strongly it fluctuates (jitter).
To get started, I cloned the Github repository and started the installation:
cd /usr/local git clone --depth 1 https://gitlab.com/NTPsec/ntpsec.git cd ntpsec ./buildprep ./waf configure --refclock=all && ./waf build && ./waf install
Then I created the directory where the statistics data will be stored:
mkdir /var/log/ntpstats
What's missing is /etc/ntp.conf
from Listing 1. Now I can start the NTP daemon. With the parameter -N
it runs with increased priority – this improves the accuracy:
ntpd -c /etc/ntp.conf -N
Listing 1
/etc/ntp.conf
Now, I have a day off – after all, ntpd
has to collect enough statistics. Typing
ntpviz @day/optionfile

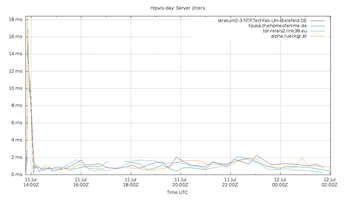

was supposed to start the visualization, but it blew up in my face the first time I tried it. It turns out that Gnuplot has to be installed – a fact that slipped by me when checking the dependencies. After installing Gnuplot everything runs like clockwork: The www/day
subdirectory contains an HTML file with various graphs (Figure 1).

Infos
- NTPsec: https://gitlab.com/NTPsec/
