The Raspberry Pi as a motion-sensing webcam
Big Pi is Watching
The new PiCam camera for the Raspberry Pi delivers image data with very little overhead, making it ideal for video surveillance applications. We find the bumps in the road you'll encounter and show you how to smooth them out with a few Linux commands and pipes.
Video surveillance has become a hot topic, but most cameras available are not really recommended: A colleague recently described the hair-raising vulnerabilities that Linux-based web and netcams typically entail in a blog post . After this kind of read, Linux admins will probably prefer to look for alternatives, which will take them right to the Raspberry Pi with the PiCam add-on (see the "Rasp Pi HD Video Camera" box).
Rasp Pi HD Video Camera
Photo resolution: 5 megapixels (2592x1944)
Video resolution: 1080p at up to 30fps, 720p at 60fps, VGA at 90fps
Lens: aperture 2.9, focal length 3.6mm (equivalent to 36mm wide-angle lens on a DSLR)

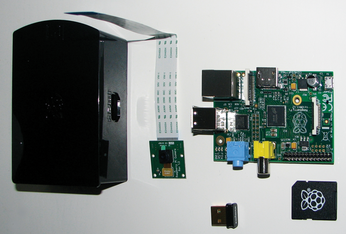

The equipment need not cost an arm and a leg. Figure 1 shows the components used in this example: Anyone wanting to use the camera in places without Ethernet wiring will need a WiFi dongle and case. The Pi detects most wireless dongles automatically; in our lab, I used a USB dongle by Edimax. The SD card comes with several OS images, which will save you a huge amount of work for a small additional price.

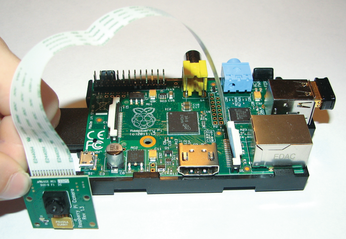

The Raspberry Pi project website has devoted a page to the camera with instructions  and a video documenting installation steps. The connector for the camera lies between the Ethernet and HDMI ports (Figure 2).
If you have never connected anything to this port before, you might be surprised how it works. To begin, you need to squeeze the ends of the cover and lift it up a couple of millimeters. The flat ribbon cable then inserts into the exposed slot with the blue side of the cable facing toward the Ethernet connector. Finally, push the holder back down to complete the installation.
The flat ribbon cable connects the camera to the Pi board, but it must not be kinked. The board of the camera module itself measures in at 25x20mm, the optical sensor is 0.5cm2 and is about 3mm high. In principle, you could cut a hole in the lid of most cases available on the market to give the camera's sensor a clear view, then fasten the board from above. Make sure you exercise great care, especially when folding the cable. You need to consider beforehand where the camera is to be used or order a matching case for the PiCam from the outset.
Before you can use the camera, you first need to activate it. To do so, log in to your Pi as the administrator and run

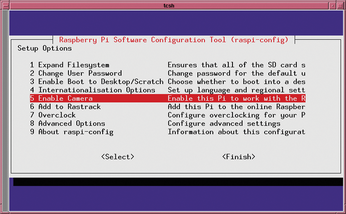

raspi-config. If your Rasp Pi is using the latest software release, you need to select the Enable Camera option (Figure 3). A reboot applies the changes.
The Raspbian distro used in the example has two binaries for interacting with the camera:
raspivid. As the names imply,
raspistill is for generating images, whereas
raspivid records video data.
Try taking a first test photo with:
raspistill -o test.jpg
The program has many options; for example,
-h let you specify the width and height of the image, and
-e <encoding> lets you produce PNG, GIF, or bitmap files instead of standard JPEG images. Also, the user can influence the exposure values of the image.
Another option worth mentioning is

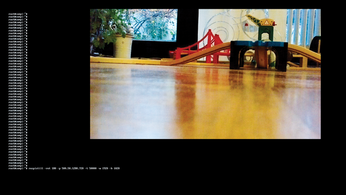

-tl <seconds>, which creates time-lapse recordings with a snapshot every few seconds. The command also provides a preview for the Pi console: Raspivid and Raspistill write directly to video memory, so an X11 environment is not necessary (Figure 4).
raspivid command shares many options with
raspistill; for example, the resolution of the recording. However, the
-t option defines the length of the recording in milliseconds: 0 instructs the Pi to record indefinitely. The
raspivid -t 10000 -o test.h264
command thus captures a 10-second video clip. Again, a number of parameters affect the recording quality; even video effects are possible.
The output format is predefined in the video command as an H.264 stream. You can use the
file type identifier to classify the output file as a JVT NAL sequence, H.264 video @ L 40, which is precisely the video format that the ubiquitous FFmpeg understands really well. Even ffplay plays it easily, and MPlayer needs only a little help; Xine fails, but VLC works.
On the Network
It is relatively easy to serve up these images on a network. For example, a script can periodically call Raspistill and assign unique file names. The files end up in a web server directory; the script author has a useful option:
-l <linkname>. Listing 1 shows how to make sure the latest image is always stored in the
latest.png file. In this case, however, caution is advised: The option
-l surprisingly sets a hardlink, not a softlink.
01 #! /bin/bash 02 03 cd /var/www/htdocs 04 while true 05 do 06 raspistill -o pic-`date +"%d.%m.%Y-%H:%M:%S"`.jpg -l latest.jpg 07 sleep 60 08 done
Even real video streams are possible here via two approaches: The Pi could write the capture data to a file, or it could broadcast live over the network. The Raspberry Pi website also has an approach for transferring the data with Netcat and playing back with MPlayer . The whole thing is simple and uses traditional Linux tools: On the receiving computer, which will be rendering the video, the user starts:
nc -l -p 12345 | mplayer -fps 31 -cache 1024 -
Netcat thus waits for connections on port 12345 and passes the data through to MPlayer, which then dutifully plays the data with these parameters. On the Pi with camera, the user needs to start the command
raspivid -t 0 -o - | nc <target> 12345
and, hey presto, you have live video streaming! This creates a data stream of about 20Mbps for a full HD video. The picture is smooth but comes with a slight delay. It is interesting to note that, according to
top, the Raspivid process consumes just 8 percent of the Raspberry's CPU power, whereas the Netcat process that forwards the data needs almost 50 percent.
If you also want to use a Pi as a receiver, follow the recommendation from the same source and play the video with:
In the hardware configuration I tested with the Edimax wireless dongle, streaming also worked at full resolution via WLAN with 802.11n. However, the receiving computer needed to recode using FFmpeg (within the
nc reception pipe), because only VLC was installed and the desktop client did not get along with the streamed data. If you experience jerky images because of CPU or bandwidth problems, you should try to reduce the video resolution or the frame rate in the call to Raspivid.
