System monitoring for a new generation with Prometheus

Level DB and DIY

Prometheus handles data management with a combination of Level DB and a SoundCloud invention. The data model relies on Level DB for indexing, but SoundCloud designed its own approach to storing data structures. In the SoundCloud developer blog, the developers explained that, in their opinion, there was no such thing as a storage engine capable of storing time series entries.

The Prometheus server is not just the storage back end that picks up data from exporters in the cluster. It is, at the same time, the port of call for users or other applications that want to read the data. To allow this to happen, the developers have devised their own query language: PromQL (Prometheus Query Language) works similarly to SQL for other databases, although it does have its own syntax (Figure 3).

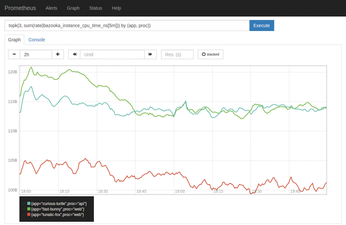

Figure 3: PromQL is a query language for Prometheus, trimmed to the needs of a time series database.

Each Prometheus instance offers a rudimentary web interface from which to submit queries. But, this local interface is not suitable for virtualization data. SoundCloud's own dashboard is used for virtualization data. However, if you just want some initial information, Prometheus' own interface will probably do the job.

Exporters

The neatest monitoring solution is nothing if it is unable to make statements about the state of individual services in the cluster, and this data has to come from somewhere. Prometheus refers to the process of collecting data as scraping. Prometheus also has its own kind of service for scraping: the exporters.

Exporters do not simply check process states on the basis of the process ID, which is what simple Nagios plugins do; instead they take a more sophisticated approach. Within Prometheus, the exporters create a data structure for the service and then read the service's metrics. In practical terms, Prometheus would retrieve the details of how many instances of haproxy were running over a certain period of time and alert if the value of this metric were too low.

Exporters are a curse and a blessing at the same time for administrators. On the one hand, developing an exporter for a specific server is far more complex than developing a minimal Nagios plugin. The exporter for HA Proxy offered by Prometheus itself makes this quite clear: In addition to familiarity with Go, you also need in-depth knowledge of which metrics are actually usable for the target service. On the other hand, you need to be familiar with Prometheus' data structure because you cannot meaningfully create metrics without this knowledge.

On a more positive note, monitoring is far more precise than what simple Nagios plugins provide. A good example is the HA Proxy Exporter: in addition to a plain statement on the matter of traffic passing through the load balancer, the current version in Prometheus gives you detailed statements on availability and performance for individual pages of the front ends configured in HA Proxy. In other words, the effort put into developing exporters does pay dividends.

The good news is that pre-built exporters already exist for many classical services. You can either pick them up from Prometheus or check with the community, where other administrators are writing and publishing exporters. The Prometheus website for exporters [6] has an up-to-date list and links to exporters for MySQL, Bind, or Apache, just to name a few.

A few services, such as Etcd, or various services from Google's Kubernetes, even offer native support for Prometheus. When Prometheus learns about the services, it automatically picks up the matching metrics.

Service Discovery

Prometheus now offers two different approaches to automatic service discovery. You can either employ DNS SRV records or use the cluster registry included with the Consul service management tool [7].

The idea behind this approach is simple: if you need to pick up the same metrics from 200 hosts, it doesn't make sense to force the admin to manually maintain a database of the existing machines when each new cluster node will need to be configured in exactly the same way for Prometheus. Using auto-discovery, Prometheus handles this task for the admin and saves a lot of work by doing so.

The node exporter has a special role – again, the exporter is offered directly by Prometheus. It provides information on each system, for example, the history of the CPU or RAM load.
